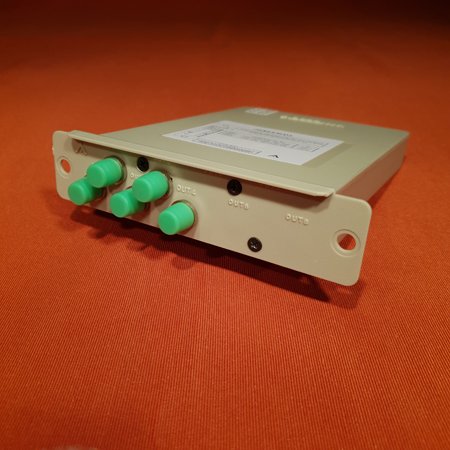

Lgx splitter module, 1×4, 15:15:20:50, three wl 1310/1490/1550nm (+/- 40nm), fc/apc

Descripción

lgx splitter module, 1×4, 15:15:20:50, three wl 1310/1490/1550nm (+/- 40nm), fc/apc
the lgx splitter module, 1×4, 15:15:20:50, three wl 1310/1490/1550nm (+/- 40nm), fc/apc is a box type splitter with a three wl 1310/1490/1550nm (+/- 40nm) splitter, is an integrated waveguide optical power distribution device. it has the characteristics of small size, wide operating wavelength range, high reliability and good uniformity of splitting. it is especially suitable for passive. in the optical network (epon, bpon, gpon, etc.), the central office and the terminal device are connected and the optical signal is split.

low insertion loss, low pdl and high reliability
high return loss and good repeatability
three wl 1310/1490/1550nm (+/- 40nm) range
excellent channel-to-channel uniformity
all products meet gr-1209-core and gr-1221-core requirements.
fiber type: g657a/g652d
working wavelength: 1260nm~1650nm
standard insertion loss (db): ratio description on each output
uniformity (db): ?0.8
pdl (db): ?0.2
wavelength dependent loss (db): ?0.8
return loss (db): ,?68(apc)
directivity (db): ?55
operating temp. gange: -40?~ +85?
