Descripción

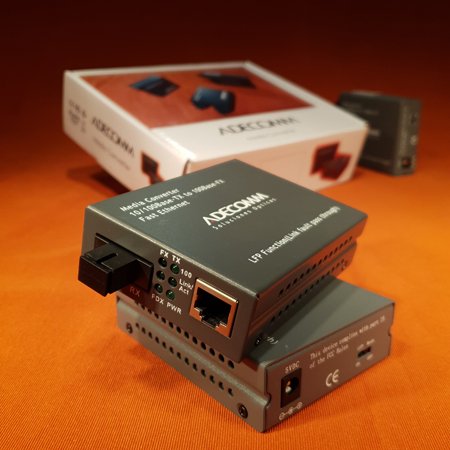

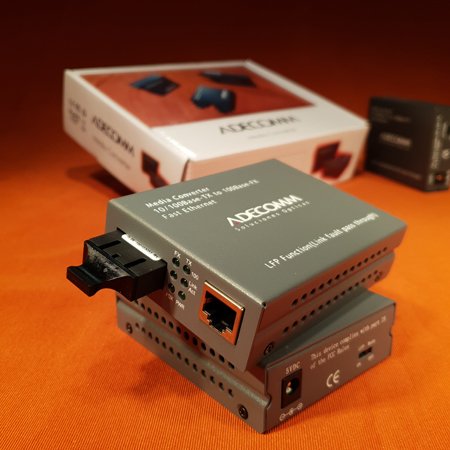

10/100/t to 100 fx adecomm media converter, single mode stand alone 20km (far end control included)
the adecomm media converter provides one port 100m fiber and one port 10/100m utp, it?s applicable to use in desktop fast ethernet networking. it is designed with ip175/icplus chip to ensure stability and ultra-low time-delay data transmission. built-in led indicators for pwr, 100, sd, fdx link/act, fx, tx can dynamic feedback link connection state and fault detection to easily monitor network status.
features:
*fiber port: sc, 100mbps. singlemode fiber tyoe, up to 20km.
*utp port: rj-45 10/100mbps, with auto negotiation function can auto select 10/100m and full duplex or half duplex, supports the connection of mdi/mdi-x auto crossover
*led indicators: pwr, fdx, fiber, tp, link, 100m
*utp/stp cable: cat.5 or cat.5e up to 100m
*standard compliance: ieee 802.3u, 100base-tx
*support flow control and broadcast storm protection
*supporting the max 1552 byte ethernet packet and flow control
*vlan function is customized
*mac address table: 2k support self-learning update
*data buffer: 384kb
*power supply: dc 5v-1a
*opreat temp.(?): 0~50
*storage temp.(?): -20~70
*size (l*w*h): 94 *70*26 ?mm?
